Have you ever found yourself frustrated when your riding lawn mower just won’t start? It’s a common issue that can leave you scratching your head, especially when the starter solenoid seems to be the culprit. If you’re looking for a quick fix to get your mower running again, you’re in the right place.
Key Takeaways
- Understanding the Starter Solenoid: The starter solenoid is crucial for connecting the battery to the starter motor; a malfunction can prevent your riding lawn mower from starting.
- Reasons to Bypass: Bypassing the solenoid can help diagnose whether the solenoid is faulty without incurring additional replacement costs, particularly useful for quick troubleshooting.
- Safety First: Always disconnect the battery, wear gloves and safety glasses, and work in a well-ventilated area when bypassing the starter solenoid.
- Tools Required: Essential tools include insulated jumper wires, a multimeter, and a socket set, which are necessary for executing the bypass correctly.
- Troubleshooting Issues: If the mower does not start after bypassing, further issues may lie within the electrical system, such as corroded connections or a faulty starter motor.
- Reverting Changes: Restoring the original setup involves carefully removing jumper wires and reconnecting the solenoid according to the manufacturer’s specifications for safe operation.
Understanding the Starter Solenoid
The starter solenoid plays a crucial role in starting your riding lawn mower. Understanding its function helps diagnose starting issues effectively.
What Is a Starter Solenoid?
A starter solenoid is an electromagnetic switch that connects the battery to the starter motor. It’s typically a cylindrical component mounted near the starter. When you turn the ignition key, the solenoid activates and allows electrical current to flow from the battery to the starter motor. If the solenoid fails, it often prevents the mower from starting.
How Does It Work?
The starter solenoid operates through a simple electrical circuit. Turning the ignition key sends a low voltage signal to the solenoid. This signal energizes the solenoid’s coil, creating a magnetic field. The magnetic field pulls a metal rod, closing the high current circuit between the battery and the starter motor. This action engages the starter, turning the engine over. If the solenoid malfunctions, you may hear a clicking sound or no sound at all when trying to start the mower.
Reasons for Bypassing the Starter Solenoid
Bypassing the starter solenoid can help you troubleshoot starting issues with your riding lawn mower. Here are some key reasons for considering this action.
Common Issues with Starter Solenoids
- Electrical Failures: Solenoids may fail due to worn-out wiring or faulty connections.
- Corroded Terminals: Rust or dirt on terminals can hinder electrical flow.
- Internal Damage: The solenoid can suffer from internal failure, preventing any electrical connection.
- Inconsistent Activation: You might notice intermittent issues, where the mower occasionally starts, leading you to suspect the solenoid.
- Quick Troubleshooting: Bypassing allows you to determine if the solenoid is the issue without replacing it.
- Cost-Effective Solution: You can use this method to avoid unnecessary replacement expenses if the problem lies elsewhere.
- Immediate Start: If you need to use the mower urgently, bypassing can start the engine temporarily.
- Understanding the System: This process helps you learn more about your mower’s electrical system and its components.
Bypassing the starter solenoid can simplify troubleshooting and potentially get you back to mowing quickly.
Step-by-Step Guide on How to Bypass Starter Solenoid on Riding Lawn Mower
This guide provides clear steps for bypassing the starter solenoid on your riding lawn mower, a solution that can help diagnose starting issues quickly.
Safety Precautions
Always prioritize safety before performing any electrical work. Follow these precautions:
- Disconnect the Battery: Remove the negative terminal from the battery to prevent accidental short-circuits.
- Wear Gloves: Protect your hands from electrical shocks or sharp metal edges present on the mower.
- Work in a Well-Ventilated Area: Ensure adequate airflow to minimize exposure to fumes or harmful gases.
- Keep Tools Organized: Maintain a neat workspace to prevent accidents and ensure you can find your tools easily.
Tools You Will Need
Gather the following tools for the bypassing process:
- Insulated Jumper Wires: Use to connect the battery and starter terminals.
- Multimeter: Check voltage and continuity in the electrical components.
- Wrenches or Socket Set: Required for loosening terminal bolts on the solenoid.
- Screwdriver: For securing or adjusting electrical connections.
- Safety Glasses: Protect your eyes from potential debris during work.
Bypassing Process
Follow these steps to bypass the starter solenoid:
- Locate the Starter Solenoid: Usually found near the battery; consult your mower’s manual if necessary.
- Identify Terminals: Find the large battery terminal and the smaller terminal that connects to the starter.
- Connect Jumper Wires:
- Attach one end of a jumper wire to the battery terminal.
- Attach the other end to the starter terminal. This bypasses the solenoid.
- Test the Connection: With the connection in place, turn the ignition key. If the engine starts, the solenoid is likely faulty.
- Remove Jumper Wires: After testing, disconnect the jumper wires carefully.
- Inspect the Solenoid: Check for any visible damage or corrosion if the engine doesn’t start. Replace if necessary.
Following these steps allows you to effectively diagnose and address starting issues with your riding lawn mower.
Troubleshooting Common Problems
Regular maintenance and troubleshooting are essential for a riding lawn mower. Understanding common issues can simplify the process when problems arise.
Recommended Products

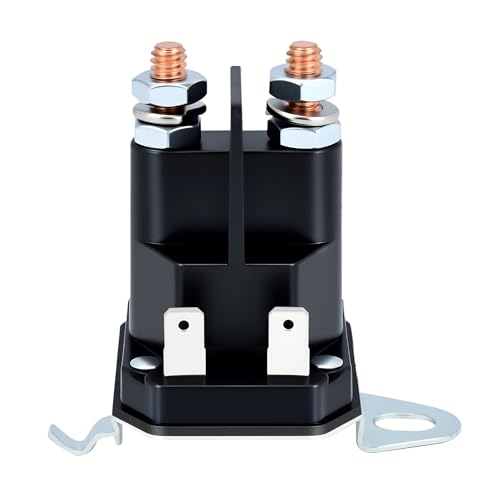

532192507 Starter Solenoid replaces part #: Husqvar-na Solenoid Part Number: 582042802, 192507, 5321925-07, 532192507, 582042801. Check Shape: 4-terminal design (2 top studs + 2 bottom spades). Different bracket/terminal = wrong purchase.
192507 Starter Solenoid Replace Part Number: H-usqvarna 582042801, 582042802, 532192507, 5321925-07, 192507. Fit Note: ONLY with 4 terminals (2 Studs + 2 Spades) & metal bracket. Not for 3-terminal versions.
【725-06153 Starter Solenoid Replace】replace for AYP 192507,for husqvarna 532192507 582042801 582042802,for cub cad 725-04439,for john deer AM138068 GY22476 AUC15346, for MTD 725-04439 762-1261-211-50, 762-1261-211-51, for cub cad Troy_bilt Craft_man 725-06153A 725-06153, for Trombetta 862-1241-211-12, 14222,for To-ro 28-4210 47-1910, for Ariens 21546294, for Stens 435-435, 435151, for Snapper 705055
Issues After Bypassing
After bypassing the starter solenoid, you might encounter several issues. A common problem includes the mower still not starting, which suggests the issue lies elsewhere in the electrical system. You may also notice a constant clicking sound, indicating that the starter may not engage properly.
In some cases, bypassing the solenoid exposes other wiring issues. For example, corroded connections or damaged wires can prevent power from reaching the starter motor. Always inspect connections closely after making modifications. If the mower starts successfully during the bypass, but shows signs of intermittent starting afterward, the solenoid likely remains faulty and may need replacement.
How to Revert Changes if Necessary
Reverting changes you’ve made is straightforward. To restore the original wiring, disconnect the jumper wires you’ve used for the bypass. Begin by disconnecting the battery to eliminate electrical hazards. Then, carefully remove the jumper wires from the battery and starter terminals.
Reattach the original wiring to the starter solenoid following the manufacturer’s specifications. Ensure connections are tight and free from corrosion. After reconnection, reconnect the battery. Test the mower to verify if it operates normally. If problems persist, further investigation into the starter motor or battery may be necessary.
Conclusion
Bypassing the starter solenoid can be a handy troubleshooting step when your riding lawn mower won’t start. It helps you quickly identify whether the solenoid is the culprit without diving into costly repairs right away.
Remember to always prioritize safety by disconnecting the battery and using the right tools. If your mower still has issues after the bypass, it might be time to inspect other parts of the electrical system.
Regular maintenance and careful checks can save you time and frustration in the long run. With a little patience and the right approach, you’ll be back to mowing in no time!
Frequently Asked Questions
What is a starter solenoid in a riding lawn mower?
The starter solenoid is an electromagnetic switch that connects the battery to the starter motor. It activates when you turn the ignition key, allowing electrical current to flow and start the engine. If it fails, the mower may not start, often resulting in a clicking sound when you try to start it.
What are common symptoms of a faulty starter solenoid?
Common symptoms of a faulty starter solenoid include a clicking sound when turning the key, the engine not starting, or intermittent starting issues. Corroded terminals, internal damage, or electrical failures can also prevent proper operation of the solenoid.
How can I bypass the starter solenoid?
To bypass the starter solenoid, disconnect the battery, use insulated jumper wires to connect the battery to the starter motor terminals, and test the connection. This helps determine if the solenoid is the issue. Always remember to follow safety precautions during this process.
What tools do I need to bypass the starter solenoid?
You will need insulated jumper wires, a multimeter, wrenches, and safety glasses to bypass the starter solenoid. These tools help ensure a safe and effective troubleshooting process while diagnosing issues with your riding lawn mower.
What should I do if my mower still won’t start after bypassing the solenoid?
If your mower still won’t start after the bypass, check for corrosion or damage in the electrical connections. If it starts but exhibits intermittent issues, the solenoid may still be faulty or there could be problems with the starter motor or battery.
How do I revert changes made during the bypass process?
To revert changes, disconnect the jumper wires and restore the original wiring to the starter solenoid. Ensure all connections are tight and free from corrosion. This will return the mower to its initial state for normal operation.
