Have you ever faced a stubborn lawn mower that just won’t start or perform as it should? A worn-out or damaged pulley could be the culprit. If you’ve noticed your mower struggling to cut grass or making strange noises, it might be time to roll up your sleeves and tackle this common repair.
Key Takeaways
- Understanding the Pulley System: Recognize the components of the lawn mower pulley system, including the engine pulley, drive pulley, idler pulley, and belt, and their respective functions in power transfer and cutting efficiency.
- Identifying Common Issues: Be aware of typical problems like worn belts, loose pulleys, and debris buildup that can affect mower performance, necessitating timely inspections and maintenance.
- Essential Tools for Replacement: Gather the right tools, such as socket sets, wrenches, screwdrivers, and pliers, to ensure a smooth process when changing the lawn mower pulley.
- Safety First: Prioritize safety by disconnecting the spark plug, wearing protective gear, and maintaining a clean workspace to prevent accidents during the repair.
- Step-by-Step Replacement Process: Follow a clear step-by-step guide for removing the old pulley and installing a new one, ensuring each component is correctly positioned and secured.
- Avoiding Common Mistakes: Prevent pitfalls like skipping safety measures, using incorrect tools, and rushing the process to facilitate a successful and efficient pulley change.
Overview of Lawn Mower Pulley System
The lawn mower pulley system plays a crucial role in transferring power from the engine to the cutting blade. This mechanical component consists of several pulleys, belts, and a drive system that work together to ensure efficient operation.
Recommended Products
V-Groove Idler Pulley Replaces 32194326 194326
194327 Idler Pulley Replaces Husqvarna Flat Idler Pulley - 532194327 Pulley Idler Flat, Husqvarna 532194327 Pulley, 194327 Drive Pulley Craftsman, 194327 Idler Pulley Craftsman 194327, Snapper 705080, Rotary 13179
Replaces Part Number: 539110411 12400 539110311 607163 14259
Components of the Pulley System
- Engine Pulley: Aligns with the engine’s crankshaft, providing power to the rest of the system.
- Drive Pulley: Connects to the belt, transferring engine power to the cutting mechanism.
- Idler Pulley: Maintains tension on the belt, ensuring optimal performance.
- Belt: Transfers the engine’s rotational movement to the blades.
Function of Each Component
- Engine Pulley: Spins as the engine runs, initiating the movement of attached components.
- Drive Pulley: Engages the belt when the engine is on, moving energy toward the cutting deck.
- Idler Pulley: Keeps the belt taut, preventing slippage and enhancing cutting efficiency.
- Belt: Transfers energy and motion to the cutting blades, allowing the mower to operate.
Common Issues with the Pulley System
- Worn Belts: May crack or fray, leading to slippage or loss of power. Inspect belts for visible damage.
- Loose Pulleys: Can create noise or cause decreased efficiency. Ensure pulleys are secure and aligned.
- Debris Buildup: Grass clippings or dirt might obstruct the pulleys, affecting performance. Regular cleaning helps.
- Regular Inspections: Check the system for wear every season, paying special attention to belts and pulleys.
- Lubrication: Apply grease to moving parts as needed to decrease friction and extend life.
- Timely Replacements: Change worn or damaged belts and pulleys promptly to avoid further issues.
Understanding these components and their functions helps ensure the effective operation of your lawn mower. Regular maintenance of the pulley system not only optimizes performance but also prolongs the lifespan of your machine.
Tools Needed for Changing Pulley
You need specific tools to change the pulley on your lawn mower effectively. Having the right tools ensures a smooth repair process and better results.
Recommended Products

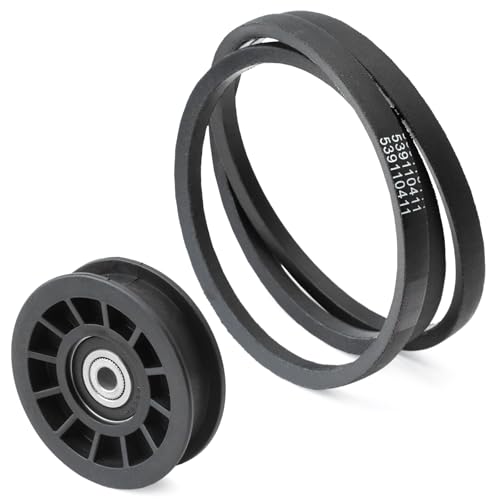

Replace Part Number: Idler pulley replace: 539110311 607163 14259, inner diameter: 3/8 inch, outer diameter: 3-1/2 inches, height: 1-1/16 inches. Drive belt replace: 539110411 12400, length: 56 inches, width: 1/2 inch
GY20629 Idler Pulley Replaces GY20629 John Deere Part GY20629 Idler Pulley John Deere GY20629 Pulley, GY20629 Flat Idler Pulley, John Deere Part GY22082 Idler Pulley John Deere GY22082 Pulley, GY20110 Idler Pulley, GY20110 Pulley, Cub Cadet 756-05034a Idler Pulley 4.50" dia, MTD 756-05034a Idler Pulley 756-05034a, 756 05034a Idler Pulley, 75605034a, 756 05034
Essential Tools
- Socket Set: A socket set with various sizes helps in removing and tightening bolts easily.
- Wrench: A combination of open-end and box-end wrenches allows you to access tight spots around the pulley.
- Screwdrivers: A flat-head and Phillips-head screwdriver assist in removing any screws holding the pulley in place.
- Pliers: Pliers can help grip small components, making it easier to maneuver them during the repair.
- Replacement Pulley: Ensure you have a compatible replacement pulley ready for installation.
- Torque Wrench: A torque wrench ensures bolts are tightened to manufacturer specifications, improving safety and function.
- Grease Gun: A grease gun keeps the pulley system lubricated, reducing wear and increasing longevity.
- Work Gloves: Wearing work gloves protects your hands from sharp edges and debris.
- Shop Vacuum: A shop vacuum helps clear debris and grass clippings from the mowing deck, creating a clean workspace.
Step-by-Step Guide to Change Pulley
Changing the pulley on your lawn mower can seem daunting, but following clear steps makes the process straightforward. Here’s how to tackle it efficiently.
Recommended Products
Also Replaces Cub Cadet: 756-3005, Exmark: 93-1622, Toro: 112895, 93-1622, Wright: 71460006
【Replace for Part Numbers】 V-Idler Pulley for AYP 194326, 532194326, for Dixon 532194326, for Husqvarna 532194326, for Snapper 705079, for Electrolux 532194326, for Jonsered 532194326, for Poulan 532194326
This ground drive idler pulley is made of hard plastic. It applies tension to the belt, allowing the belt to turn.
Safety Precautions
- Disconnect the Spark Plug: Before starting, unplug the spark plug wire to prevent accidental starts.
- Wear Protective Gear: Use gloves and safety goggles to protect yourself from debris and sharp edges.
- Work in a Clear Area: Ensure your workspace is well-lit and free from clutter to prevent accidents while you work.
Removing the Old Pulley
- Access the Pulley: Remove the mower deck according to your mower’s manual. This often involves unfastening bolts or clips.
- Inspect the Components: Check the old pulley and surrounding parts. Take note of any additional wear or damage.
- Loosen the Bolts: Use a socket wrench to remove the bolts holding the pulley in place. Make sure to keep these bolts safe for later use.
- Remove the Old Pulley: Carefully slide the pulley off the spindle. If it resists, gently wiggle it or tap it with a rubber mallet to loosen.
- Prepare the New Pulley: Inspect the new pulley for damage. It should fit snugly onto the spindle when installed correctly.
- Position the New Pulley: Slide the new pulley onto the spindle, aligning it with the mounting holes.
- Secure with Bolts: Insert and tighten the bolts you previously removed. Use a torque wrench to ensure they’re secure without over-tightening.
- Reassemble the Mower Deck: Attach the mower deck back onto the mower, following the instructions from your mower’s manual.
Following these steps helps ensure your lawn mower operates smoothly and effectively.
Common Mistakes to Avoid
Changing the pulley on a lawn mower can be straightforward, but several mistakes can complicate the process. Avoid these common pitfalls for a smoother repair.
Skipping Safety Measures
Prioritize safety before starting your repair. Skipping steps like disconnecting the spark plug can lead to accidents. Always ensure the mower is off and unplugged.
Using Incorrect Tools
Utilizing the wrong tools can damage components or make the job harder. Ensure you have a socket set, wrenches, and specific tools for your mower’s model. Double-check the toolkit before starting.
Ignoring the Pulley Orientation
Reinstalling the new pulley in the wrong orientation affects performance. Take note of how the old pulley is positioned before removal. Document the orientation for accurate reinstallation.
Failing to Clean Debris
Neglecting to clean debris from the area can cause future problems. Clear out dirt, grass, and other residues around the pulley site before installing the new part. A clean workspace helps ensure optimal function.
Not Tightening Bolts Properly
Loose bolts can lead to pulleys slipping or detaching during operation. After installing the new pulley, make sure all bolts are tightened securely. A torque wrench can help apply the correct pressure.
Overlooking Component Inspection
Ignoring the condition of nearby components can lead to additional repairs later. Inspect belts, bearings, and other pulleys for wear and damage during the pulley change. Replace any compromised parts.
Rushing the Process
Rushing through the steps can result in overlooking important details. Allow yourself enough time to complete the job efficiently. Take breaks if needed to assess each step thoroughly.
By avoiding these common mistakes, you enhance the chances of a successful pulley change and keep your lawn mower running smoothly.
Conclusion
Changing the pulley on your lawn mower can seem daunting but with the right tools and steps, you can tackle it with confidence. By following the guide and keeping safety in mind, you’ll not only enhance your mower’s performance but also extend its life. Remember to take your time and double-check your work to avoid common mistakes.
With a little patience and effort, you’ll have your lawn mower running smoothly again. Happy mowing!
Frequently Asked Questions
What are common symptoms of a worn-out lawn mower pulley?
Signs of a worn-out lawn mower pulley include difficulty cutting grass, unusual noises, and inconsistent blade movement. If you notice these issues, it could indicate that the pulley needs inspection or replacement.
How can I maintain my lawn mower’s pulley system?
To maintain your lawn mower’s pulley system, regularly inspect the pulleys and belts for wear, lubricate moving parts, and clean debris from the area. Timely replacements of worn components help ensure the mower runs smoothly.
What tools do I need to change a lawn mower pulley?
You’ll need essential tools such as a socket set, wrenches, screwdrivers, pliers, a replacement pulley, a torque wrench, a grease gun, work gloves, and a shop vacuum. Each tool aids in effectively changing the pulley.
Can I change the lawn mower pulley myself?
Yes, you can change the lawn mower pulley yourself by following steps outlined in a guide. Ensure you take safety precautions, use the right tools, and follow each step carefully for a successful replacement.
What mistakes should I avoid when changing the lawn mower pulley?
Avoid common mistakes like neglecting safety measures, not using the right tools, failing to clean debris, and rushing through the process. Also, ensure proper pulley orientation and tightness of bolts to prevent issues.
