Have you ever tried starting your riding lawn mower only to hear a frustrating click instead of the roar of the engine? If so, you might be dealing with a faulty solenoid. This little component plays a big role in getting your mower up and running, and knowing how to check it can save you time and money.
Key Takeaways
- Understanding the Role: The solenoid is crucial for starting your riding lawn mower; knowing how to check it can save time and repair costs.
- Necessary Tools: Gather essential tools including a multimeter, screwdrivers, wrench set, wire brush, safety gloves, safety goggles, and jumper cables before starting.
- Safety First: Always prioritize safety by wearing gloves and goggles, disconnecting the battery, and ensuring proper ventilation during maintenance.
- Testing Steps: Follow the correct procedures for checking the solenoid using a multimeter to measure voltage; 12 volts indicates proper functioning.
- Common Symptoms: Be on the lookout for symptoms of a faulty solenoid, such as clicking sounds, slow cranking, or intermittent starting issues, which can guide troubleshooting.
- Regular Maintenance: Conduct routine inspections, clean corroded connections, and test the solenoid periodically to ensure optimal performance and extend the life of your mower.
Tools Needed for Checking the Solenoid
To check the solenoid on your riding lawn mower, gather the following tools:
Recommended Products

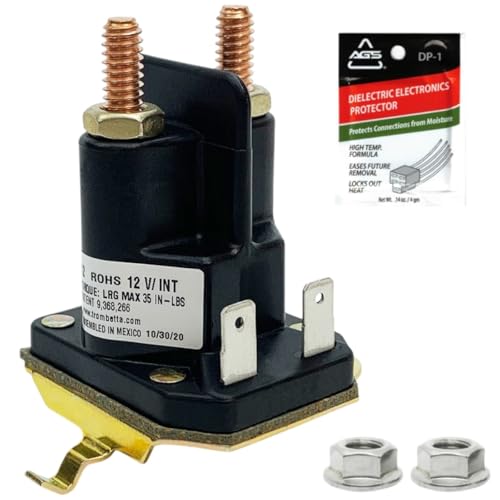

GENUINE TROMBETTA COMPONENT — Experience unparalleled reliability with this premium 12V starter solenoid, engineered to meet OEM specifications for precise fit, performance, and durability. This remote electromagnetic switch provides powerful engagement to the starter motor. Its robust coil windings and high-conductivity copper contacts ensure maximum energy transfer and resist electrical arcing and heat fatigue, providing dependable starting power in all weather conditions.
SPEC: Zinc plated, 12V 100A, Copper Studs: 1/4"-20, Please make sure your thread matches ours, Otherwise you may need to drill out and use bolt & nut to mount. Made of high quality material, provides long durability and reliability.
Lawn Mower Universal Starter Solenoid Replace Part Number: Compatible with Husqvarna Craftsman Poulan 532192507 Starter Solenoid; Compatible with Husqvarna Craftsman Poulan 582042801 Lawn Mower Starter Solenoid; Compatible with Husqvarna Craftsman Poulan Lawn Mower & Tractor Solenoid Starter Switch 582042802; Compatible with AYP 192507 Mower Solenoid; Compatible with Ariens 21546294 Snapper 705055 Solenoid
Multimeter
Use a multimeter to measure voltage and continuity. It helps determine if the solenoid is functioning properly.
Screwdriver Set
A set of screwdrivers, including flathead and Phillips, helps you access the solenoid. You’ll need these to remove mounting screws.
Wrench Set
Select appropriate-sized wrenches to disconnect the battery cables. This step ensures safety while working on the mower.
Wire Brush
A wire brush cleans corrosion from connections, ensuring good contact points during testing.
Safety Gloves
Wear safety gloves to protect your hands. This safeguard prevents potential injuries from sharp components.
Safety Goggles
Put on safety goggles for eye protection. Flying debris or chemical exposure may pose risks during maintenance.
Jumper Cables
Jumper cables allow you to test the solenoid’s engagement directly. Connect these to check if the solenoid activates.
Ensure you have these tools on hand before starting the solenoid check. This preparation creates a smoother and safer process while diagnosing your mower’s issues.
Steps to Check the Solenoid
Follow these steps to effectively check the solenoid on your riding lawn mower.
Recommended Products
【Starter Solenoid】12V Starter relay solenoid for John Deere, Cub Cadet, MTD, Troy-Bilt Trombetta riding lawn mower tractor. Replace part number: 725-04439 725-04439B GY22476 AUC15346 AM138068 862-1211-211-16.
Part Number: 12V Starter solenoid relay compatible with Craftsman LT1000 146154 145673 175141 178861 168327; Poulan 532145673 145673 146154; Husqvarna 532109081, 532109946, 532146154, 532145673; AYP 109081X, 109446X, 109946, 145673, 146154; John Deere AM130365, AM132990, AM133094, AM138497, GY00185; Cub Cadet MTD 725-04439A; Briggs and Stratton 745001MA; Grasshopper 184251; Gravely 044766 045071 045071000 45071; Exmark 1-513075 117-1197 513075
532192507 Starter Solenoid replaces part #: Husqvar-na Solenoid Part Number: 582042802, 192507, 5321925-07, 532192507, 582042801. Check Shape: 4-terminal design (2 top studs + 2 bottom spades). Different bracket/terminal = wrong purchase.
Safety Precautions
Wear safety goggles and gloves before starting. Ensure you’re working in a well-ventilated area. Don’t smoke or use open flames nearby. Always prioritize your safety by being cautious of electrical components.
Disconnecting the Battery
- Remove the Keys: Start by taking out the ignition keys to prevent accidental starts.
- Locate the Battery: Find the mower’s battery, typically under the seat or hood.
- Disconnect the Cables: Use a wrench to disconnect the negative cable first, then the positive one. This prevents short circuits.
Locating the Solenoid
- Identify the Solenoid: The solenoid is usually mounted on or near the starter motor. It’s a small cylindrical component with two large terminals and sometimes a smaller terminal for the ignition wire.
- Refer to the Manual: Check your user manual for specific solenoid locations relevant to your mower’s model. This will clarify any confusion.
Testing the Solenoid with a Multimeter
- Set Up the Multimeter: Turn the multimeter to the DC voltage setting.
- Connect the Leads: Attach the black lead to a clean ground point on the mower. Connect the red lead to the solenoid’s positive terminal.
- Turn the Ignition Key: While holding the key in the start position, read the voltage on the multimeter. A reading of 12 volts indicates the solenoid is receiving power.
- 12 Volts Present: If you read 12 volts, the solenoid is functioning properly. If the mower still doesn’t start, check the starter or wiring.
- No Voltage Reading: If the solenoid shows no voltage, it may be faulty or need a new ignition switch. Additionally, inspect all related wiring for damage or corrosion.
- Low Voltage: A reading below 12 volts suggests an issue with the battery or connections. Recharge or replace the battery as necessary.
By following these steps, you can effectively check the solenoid and identify any issues with your riding lawn mower’s starting system.
Common Issues with Solenoids
Understanding solenoid issues can simplify troubleshooting for your riding lawn mower. Common problems often manifest through distinct symptoms.
Recommended Products
192507 Starter Solenoid Replace Part Number: H-usqvarna 582042801, 582042802, 532192507, 5321925-07, 192507. Fit Note: ONLY with 4 terminals (2 Studs + 2 Spades) & metal bracket. Not for 3-terminal versions.
【Replace】 Zinc plated 12V 100A 4 Term Starter Solenoid 725-06153A 725-06153 directly replace MTD Cub Cadet Troy-Bilt Craftsman zero turn Yard Man Husky Yard Machines original parts.
Compatible with: ①Craftsman: 917276827 917287220 917287140 917288520 917287240 917287461 917287011 917289240 917276600 917288480 917288260 917289030 917.2887 917.276865 917288071 917276181 917288522 917287010 917289740 917.289081 917276703 917286460 917289031 917288032 917288517 917287121 917288513 917288220 917250220 917275351 917254320 917276813 917288612 917276863 917253120 917253151 917253160 917253300 917253310 917253320 riding mower.
Symptoms of a Faulty Solenoid
- Clicking Sound: A rapid clicking noise when you turn the key indicates the solenoid may not be functioning correctly.
- No Noise at All: If the ignition produces no sounds, the solenoid might not be receiving power or could be defective.
- Slow Cranking: If the engine cranks slowly but doesn’t start, the solenoid may be weak or have bad connections.
- Intermittent Starting: If the mower starts fine sometimes and fails at other times, the solenoid connections might be loose or corroded.
- Check Connections: Ensure all electrical connections to the solenoid are tight and free from corrosion. Clean connections with a wire brush if needed.
- Test Voltage: Use a multimeter to measure voltage at the solenoid. A lack of power indicates issues upstream in the battery or ignition switch.
- Inspect for Damage: Look for visible damage on the solenoid. Cracks or corrosion can hinder its performance.
- Consider Bypassing: Use jumper cables to temporarily bypass the solenoid. If the mower starts, the solenoid likely needs replacement.
- Consult the Manual: Refer to your lawn mower’s user manual for specific troubleshooting guides and diagrams related to the solenoid.
By identifying these common symptoms and applying the troubleshooting tips, you can effectively address solenoid issues in your riding lawn mower.
Maintaining the Solenoid
Maintaining the solenoid helps ensure your riding lawn mower starts reliably. Regular checks and cleaning can prevent many issues associated with this component. Follow these practical steps to maintain the solenoid effectively.
Routine Inspection
- Check Connections: Inspect the solenoid’s wiring for secure connections. Loose wires can lead to poor performance.
- Look for Corrosion: Examine terminals for signs of corrosion. Clean corrosion using a wire brush before reattaching connections.
- Test Voltage: Use a multimeter to check voltage levels periodically. Confirm readings remain around 12 volts.
Cleaning Procedures
- Disconnect Power: Always disconnect the battery before cleaning. This prevents electric shocks or damage.
- Use a Damp Cloth: Wipe down the solenoid with a damp cloth to remove dirt and grime. Ensure it dries completely before reassembly.
- Apply Contact Cleaner: Use a contact cleaner spray on connections if corrosion is extensive. This helps restore effective contact.
- Conduct Periodic Tests: Test the solenoid at least once a season. This proactive measure identifies issues before they escalate.
- Recognize Symptoms: Understand signs of a failing solenoid, such as clicking noises or intermittent starting. Address these symptoms promptly.
- Consider Replacement: If the solenoid fails testing or shows severe damage, consider replacing it. New components can restore optimal function.
By consistently maintaining the solenoid, you increase the longevity and reliability of your riding lawn mower. Regular checks and cleaning keep it in top shape, ensuring smooth operation for every mowing session.
Conclusion
Checking the solenoid on your riding lawn mower can save you from unnecessary headaches and expenses. By following the steps outlined and using the right tools you can easily diagnose and maintain this crucial component. Regular inspections and cleaning can keep your mower running smoothly.
Don’t forget to watch for those telltale signs of a failing solenoid. Staying proactive with maintenance will help ensure your mower’s reliability season after season. With a little effort you can enjoy a well-functioning mower that makes lawn care a breeze. Happy mowing!
Frequently Asked Questions
What should I do if my riding lawn mower makes a clicking sound but won’t start?
A clicking sound typically indicates an issue with the solenoid or battery connections. Start by checking the battery charge. If it’s charged, inspect the solenoid and connections for corrosion and proper tightness.
How do I check the solenoid on my riding lawn mower?
To check the solenoid, gather a multimeter, screwdriver, wrench set, and safety gear. Disconnect the battery, locate the solenoid, and use the multimeter to check for voltage readings. A reading of 12 volts indicates it’s functioning properly.
What tools do I need to check the solenoid?
You’ll need a multimeter to measure voltage, a screwdriver and wrench set to access the solenoid, a wire brush to clean corrosion, safety gloves and goggles for protection, and jumper cables for testing engagement.
How often should I maintain the solenoid on my mower?
Regular maintenance is essential. Aim to inspect and test the solenoid at least once each season. This includes checking connections for corrosion and conducting voltage tests to ensure reliable starting.
What are the signs of a faulty solenoid?
Common symptoms include a rapid clicking sound, no noise at all, slow cranking, or intermittent starting. If you experience these issues, consider testing the solenoid and inspecting connections for damage or corrosion.
