Have you ever found yourself frustrated with a lawn mower that just won’t start? If you’re dealing with a faulty electric clutch, you’re not alone. Many homeowners face this issue, and it can really put a damper on your weekend plans.
Key Takeaways
- Essential Tools Required: Gather tools including a wrench set, socket set, screwdrivers, pliers, torque wrench, and safety gear (gloves and safety glasses) for effective electric clutch removal.
- Safety Precautions: Prioritize safety by disconnecting the battery, working in a well-ventilated area, and following the mower’s manual to minimize accident risks.
- Step-by-Step Removal Guide: Disconnect the battery, remove the mower deck, unplug the clutch, and then carefully unbolt and lift the electric clutch from the drive shaft.
- Common Issues: Identify symptoms of a faulty electric clutch including failure to engage, unusual noises, overheating, and intermittent power.
- Troubleshooting Steps: Inspect wiring, test the clutch voltage, check for damage, and ensure proper grounding to resolve clutch performance issues.
- Maintenance Recommendations: Regularly inspect the electric clutch, keep the mower clean, and adhere to the manufacturer’s maintenance guidelines for optimal functionality.
Tools and Materials Needed
To remove the electric clutch on your lawn mower, gather the following tools and materials.
Recommended Products

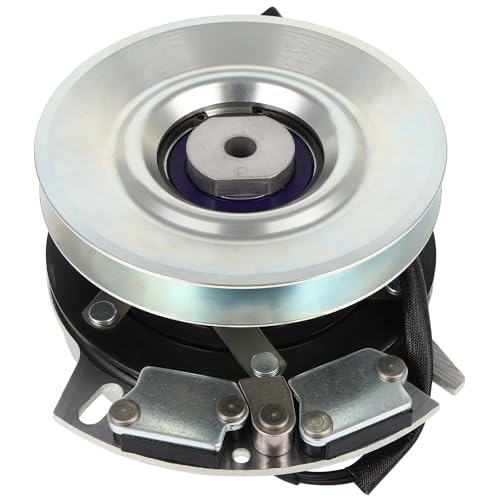

FITMENT:The PTO Clutch Fit for Quest: QT22KA421 SN920, 000 and up, QTE651KA421 SN313, 000 and up, QTS691KA422 SN313, 000 and up, Time CUtter Z4235 and 24235-55 serial no.310000001-312999999, Time CUtter ZS 3200 serial no.311000001-312999999, Time CUtter Z4200 Serial no.310000001-310999999, Time CUtter ZS4200-SS4200S-SS4200TF serial no.311000001-312999999

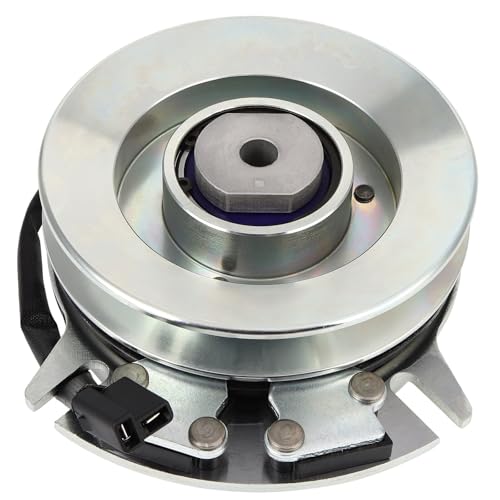

FITMENT:The PTO Clutch Fit for LT1024, RTZ54, GT1054/GT1554/GTX1054/GTX1554, SLT1550/SLT1554/SLTX1550/SLTX1554, LGT1050/LGT1054/LGTX1050/LGTX1054, TB2654 14AK94KK066 14AB809H063(GT-2246),14AR809K063(GT-2554), 14AZ809H063(GTX-2446), 14AZ809K063(GTX-2654), 14AZ809K766 Big/RTZ 54 LT 1024 GT-1054 GT-1554 GTX-1054 GTX-1554 SLT 1550 SLT 1554 SLTX 1550 SLTX 1554 LGT 1050 LGT 1054 LGTX 1050
Genuine Husqvarna replacement part.
Essential Tools
- Wrench Set: Use a set of wrenches for loosening bolts. Ensure you have both metric and standard sizes to fit various fasteners.
- Socket Set: A socket set helps in removing stubborn nuts. A ratchet will speed up the process.
- Screwdriver: A flathead and Phillips screwdriver assist in removing cover plates and other components.
- Pliers: Needle-nose pliers can grip and twist wiring or other small components effectively.
- Torque Wrench: Use this for reassembling the clutch to ensure proper tightness of bolts.
Safety Gear
- Gloves: Wear gloves to protect your hands from sharp edges and hot components.
- Safety Glasses: These prevent debris from getting into your eyes during the process.
- Replacement Electric Clutch: If you’re replacing the old one, ensure to get the exact model for compatibility.
- Lubricant: Use a light lubricant on bolts and fittings to ease removal and prevent rust.
- Cleaning Rags: Keep rags handy for cleaning grease and oil from parts.
Gathering these tools and materials beforehand ensures a smoother and more efficient process when removing the electric clutch on your lawn mower.
Safety Precautions
Before removing the electric clutch on your lawn mower, you must prioritize safety. Following these precautions protects you during the repair process.
- Disconnect the Battery: Always disconnect the battery before starting any work. This prevents accidental starts that could cause injury.
- Use Personal Protective Equipment (PPE): Wear gloves to avoid cuts and scrapes. Safety glasses shield your eyes from flying debris.
- Work in a Well-Ventilated Area: Ensure you’re in a space with good airflow. A well-ventilated area reduces exposure to any gases or fumes emitted from the mower.
- Keep the Work Area Clean: Remove any clutter around your workspace. A clean area minimizes tripping hazards and keeps tools organized.
- Follow Manufacturer’s Instructions: Always refer to your mower’s manual. Specific models may have unique safety warnings and instructions.
- Check Tools for Damage: Inspect your tools before use. Damaged tools can malfunction and lead to accidents.
- Handle Fuel Safely: If your work involves moving the mower, check the fuel system. Leaking fuel presents a fire hazard.
By following these safety precautions, you ensure a safer environment for removing the electric clutch on your lawn mower.
Step-by-Step Guide
Follow these steps carefully to remove the electric clutch from your lawn mower. Make sure to have your tools ready and adhere to safety precautions throughout the process.
Recommended Products
FITS THE POWER TAKE OFF CLUTCH: the PTO Clutch fit for AYP Over 254 Models Use this Clutch; for AYP Poulan Pro Series; for AYP Statesman Series; for AYP Too Many To List; for AYP YTH2148 - YTH2448 Series; for Husqvarna Over 254 Models Use this Clutch; for Husqvarna Too Many To List; for Husqvarna YTH Series; for Husqvarna YTKH Series; for Sears Craftsman Over 254 Models Use this Clutch; for Sears Craftsman Too Many To List
Compatible with: AYP PP PPR RKGT QPGT TS Y and YGT YPQGT Series Husqvarna GT200 GTH200 GTH220 Series GTH225, GTH2250A - B - C - XPA GTH2350 GTH250 GTH2550A Craftsman GTH220 HAGTH220B Before Year 1999 PP22H50K, PP22H50KA.
Replaces OEM Parts: 532179334 532414336 179334 532400008 414336 400008 471717P
Disconnecting the Battery
- Locate the battery compartment and remove the cover, if necessary.
- Use a wrench to disconnect the negative terminal first, followed by the positive terminal.
- Store the battery away safely to avoid accidental contact during the repair.
Removing the Deck
- Identify the deck attachment points, often found under the mower.
- Use a socket set to remove bolts securing the deck.
- Carefully slide the deck out from under the mower, keeping any belts attached for now.
- Tilt the deck if needed to fully release it from the mower body.
Unplugging the Clutch
- Find the wiring harness connected to the electric clutch.
- Gently pull the connector to unplug the wire harness.
- Check for any locking tabs on the harness; if present, press them down while pulling to avoid damage.
- Locate the bolts securing the electric clutch to the engine.
- Use a socket set to remove these bolts, ensuring you support the clutch while unscrewing.
- Lift the clutch assembly off the drive shaft carefully. It may require a bit of wiggling to free it completely.
- Inspect the assembly and surrounding areas for any debris or damage before storing or replacing components.
Following these steps, you’ll successfully remove the electric clutch from your lawn mower.
Common Issues and Troubleshooting
Electric clutches in lawn mowers can encounter several common issues. Understanding these problems can simplify the troubleshooting process.
Recommended Products
FITMENT:The PTO Clutch Fit for 800 Series Home Depot 50" & 54" LX500 GT2100 & GT2300 Garden Tractor All, LX468 Lawn Tractors 2010 to 2011, RZT-L46/S46/L50KH/S50KH/L50KW/S50KW/L54KH/S54KH/L54KW/S54KW, for M-ustang 46 XP 50 XP/RZT46 Z-6400 ZT-L50 ZT-546, RZT50/54, FMZ50, LTX1042/1045/1046/1050, Z Force S Series
SUITABLE VEHICLE：The PTO Clutch Fit for SEARS for Craftsman: PYT9000, for MTD Columbia: YT4220SE YT4622SE YT950KH, for CUB CADET: LT1040 LT1042 LT1045 LT1046 LT1050 replace for BOLENS/ for Craftsman/ for CUB CADET/ for HUSKEE/ for MTD/ for Troy-Bilt/ for WHITE: 717-04163, 717-04163A, 917-04163, 917-04163A,for Rover: 917-04163A,for Swisher: 5217-43,for Warner: 5217-32, 5217-43,for XTREME: X0013
Specs: PTO Clutch, Notes: Cool Coil Technology, Belt Width: 1/2" or 5/8", ID: 1", Includes: Clutch side integrated, water tight and impact resistant wire harness, Pulley Diameter: 5 3/8", Rotation Direction: Counter Clockwise
Symptoms of a Faulty Electric Clutch
- Mower Won’t Engage: If the mower blades don’t engage when you pull the switch, check the clutch first.
- Noises: Listen for grinding or unusual noises when engaging the blades. This often indicates wear or damage.
- Overheating: If the clutch becomes excessively hot, it may not operate correctly or could even burn out.
- Intermittent Power: If the blades engage and disengage erratically, it signals an issue with the electrical connections.
Troubleshooting Steps
- Check Connections: Inspect all wiring and connectors leading to the electric clutch. Look for frayed wires or loose connections.
- Test the Clutch: Use a multimeter to check the voltage at the clutch. Ensure it receives the correct voltage when engaged.
- Inspect for Damage: Examine the clutch assembly for cracked or damaged parts. Any visible damage warrants replacement.
- Verify Grounding: Ensure that the clutch is properly grounded. A poor ground can disrupt the function.
Maintenance Tips
- Regular Inspection: Periodically check the clutch and wiring to catch issues early.
- Clean Environment: Keep the undercarriage of the mower clean to minimize debris buildup that can affect the clutch.
- Follow Manufacturer Guidelines: Adhere to maintenance schedules as outlined in your mower’s manual for optimal performance.
- Persistent Problems: If troubleshooting fails to resolve issues, consider consulting a professional for deeper inspection.
- Complex Repairs: Any damage requiring significant repairs, such as internal clutch parts or electrical systems, usually demands expert advice.
By following these troubleshooting steps, you can address common electric clutch issues and keep your lawn mower running smoothly.
Conclusion
Removing the electric clutch from your lawn mower might seem daunting at first but with the right tools and precautions, you can tackle it confidently. Remember to prioritize safety by disconnecting the battery and wearing appropriate gear.
By following the step-by-step guide, you’ll not only resolve issues with your mower but also gain a better understanding of its mechanics. Regular maintenance can go a long way in preventing future problems.
If you find yourself stuck or unsure, don’t hesitate to reach out for professional help. Happy mowing and enjoy your well-maintained lawn!
Frequently Asked Questions
What is a common reason lawn mowers fail to start?
A common reason lawn mowers fail to start is a faulty electric clutch. This issue can disrupt your plans and is frequently experienced by homeowners.
What tools do I need to remove an electric clutch?
To remove an electric clutch, gather essential tools like a wrench set, socket set, screwdrivers, pliers, and a torque wrench. Don’t forget safety gear such as gloves and safety glasses.
What safety precautions should I take before beginning the repair?
Before starting the repair, disconnect the battery, wear PPE, work in a well-ventilated area, keep your workspace clean, follow the manufacturer’s instructions, and handle fuel safely.
How do I disconnect the battery on a lawn mower?
Start by locating the battery, then use a wrench to disconnect the negative terminal first. This prevents accidental starts and ensures safety while you work.
What steps are involved in removing the electric clutch?
To remove the electric clutch, first disconnect the battery. Then, remove the mower deck, unplug the clutch wiring harness, and unscrew the bolts securing the clutch to the engine.
What are the symptoms of a faulty electric clutch?
Symptoms include the mower not engaging, unusual noises, overheating, and intermittent power. Identifying these signs early can help prevent further issues.
How can I troubleshoot electric clutch issues?
To troubleshoot, check connections, test the clutch voltage, inspect for damage, and verify proper grounding. Regular maintenance and cleaning can also help keep the mower functioning well.
When should I consult a professional for lawn mower issues?
Consult a professional if you encounter persistent problems or complex repairs that you’re unable to resolve after following troubleshooting steps.
